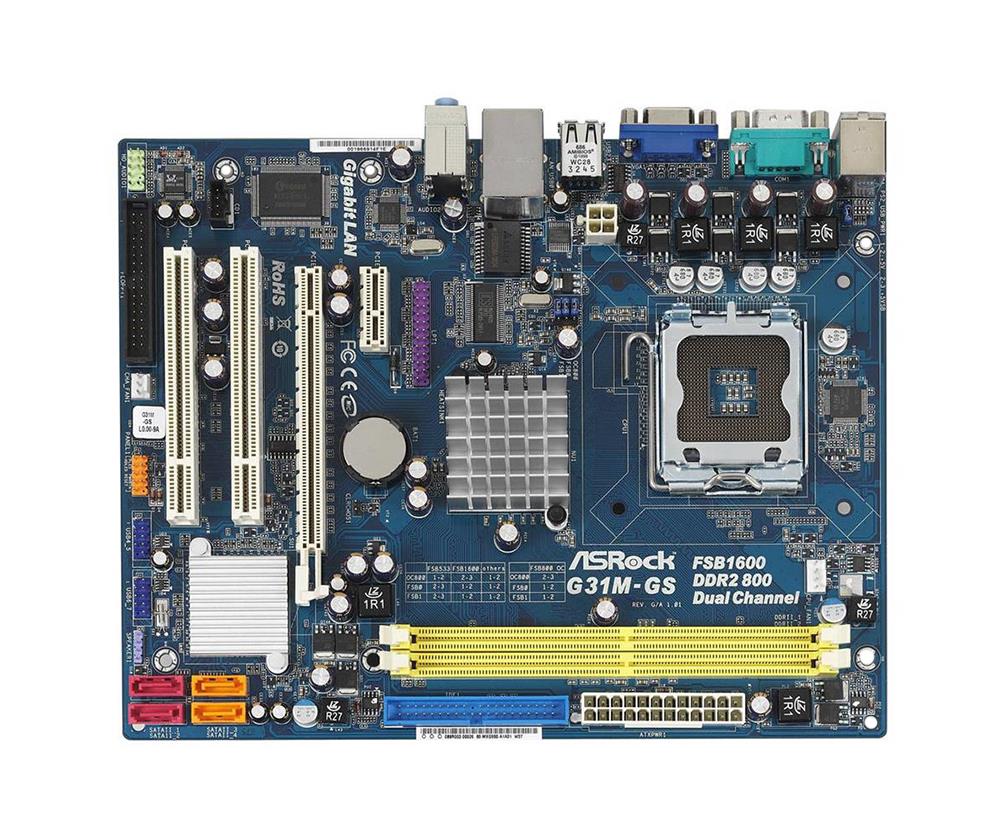

101746 ASRock G31M-GS R2.0 Socket LGA 775 Intel G31 + ICH7 Chipset Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core Processors Support DDR2 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
101746 ASRock G31M-GS R2.0 Socket LGA 775 Intel G31 + ICH7 Chipset Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core Processors Support DDR2 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

101746 ASRock G31M-GS R2.0 Socket LGA 775 Intel G31 + ICH7 Chipset Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core Processors Support DDR2 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

101746

$174.57 $249.39 You Save: $74.82 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of 101746? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 101746

Model
Manufacturer ASRock
Manufacturer Part # 101746
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 775
Supported CPU(s) Intel Celeron Dual-Core Processor
 Intel Celeron Processor
 Intel Core2 Duo Desktop Processor
 Intel Core2 Extreme Processor
 Intel Core2 Quad Processor
 Intel Pentium Dual-Core Processor
FSB Speed (Maximum) 1600 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipset Intel G31 Express
South Bridge Chipset Intel ICH7
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC2-5300 (DDR2-667)
 PC2-6400 (DDR2-800)
Maximum Installed Memory 8 GB
Expansion Slots PCI-E x1
 PCI-E x16
Storage Controller SATA 3.0 Gbps
Audio Controller Realtek ALC662
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 Audio-In
 Audio-Out
 Chassis Fan Connector
 COM
 CPU Fan Connector
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 3.0
 VGA
Connectors/Ports Details Connector
  • 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
  • 1 x ATA100 IDE connector (supports 2 x IDE devices)
  • 1 x Floppy connector
  • 1 x Print port header
  • CPU/Chassis FAN connector
  • 24 pin ATX power connector
  • 4 pin 12V power connector
  • CD in header
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Serial Port: COM1
  • 1 x VGA Port
  • 4 x Ready-to-Use USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jack: Line in / Front Speaker / Microphone
    		•
    Request for Quote:  101746

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 101746. Or Request a Quote below:



    General Information

  • 101746 ASRock G31M-GS R2.0 Socket LGA 775 Intel G31 + ICH7 Chipset Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core Processors Support DDR2 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
